Performance data - IE2 (1500 min⁻¹, 4 pole)

Rated Power		Full load speed	Frame reference	Full load current at rated voltage			Efficiency	Power Factor	Mean sound pressure level	Weight
kW	hp	min⁻¹	Type	380 V (A)	400 V (A)	415 V (A)	η 1.0 P_N (%)	Cos φ 1.0 P_N	L_pA dB(A)	kg
0.75	1.0	1390	A-DA80MB	1.88	1.78	1.72	79.6	0.76	46	14.5
1.10	1.5	1390	A-DA90SA	2.66	2.53	2.44	81.4	0.77	48	18.5
1.50	2.0	1390	A-DA90LA	3.57	3.39	3.27	82.8	0.77	48	21.0
2.20	3.0	1390	A-DA100LA	4.88	4.64	4.47	84.3	0.81	52	31.0
3.00	4.0	1410	A-DA100LB	6.50	6.18	5.95	85.5	0.82	52	37.0
4.00	5.5	1410	A-DA112MA	8.55	8.12	7.83	86.6	0.82	53	42.0
5.50	7.5	1435	A-DA132SA	11.50	10.90	10.50	87.7	0.83	59	52.5
7.50	10	1440	A-DA132MA	15.30	14.50	14.00	88.7	0.84	59	64.0
11.00	15	1440	A-DF160MA	22.10	21.00	20.30	89.8	0.84	62	99.0
15.00	20	1460	A-DF160LA	29.60	28.10	27.10	90.6	0.85	62	114
18.50	25	1470	A-DF180MA	35.80	34.00	32.80	91.2	0.86	64	185
22.00	30	1470	A-DF180LA	42.20	40.20	38.80	91.6	0.86	64	200
30.00	40	1470	A-DF200L	57.30	54.40	52.50	92.3	0.86	64	270
37.00	50	1480	A-DF255S	69.70	66.20	63.80	92.7	0.87	64	310
45.00	60	1480	AU-DF225M	84.30	80.10	77.20	93.1	0.87	65	340
55.00	77	1480	AU-DF250MA	103.00	97.50	94.00	93.5	0.87	66	413
75.00	100	1480	AU-DF280S	139.00	132.00	127.00	94.0	0.87	69	530
90.00	125	1480	AU-DF280MA	167.00	158.00	153.00	94.2	0.87	69	630
110.00	150	1485	AU-DF315S	201.00	191.00	184.00	94.5	0.88	77	950
132.00	175	1485	AU-DF315M	240.00	228.00	220.00	94.7	0.88	77	1037
160.00	215	1485	AU-DF315LA	288.00	273.00	263.00	94.9	0.89	82	1107
200.00	270	1485	AU-DF315LB	359.00	341.00	328.00	95.1	0.89	82	1225
250.00	335	1490	AU-DF355M	443.00	421.00	406.00	95.1	0.90	84	1734
315.00	430	1490	AU-DF355L	559.00	531.00	511.00	95.1	0.90	84	1940

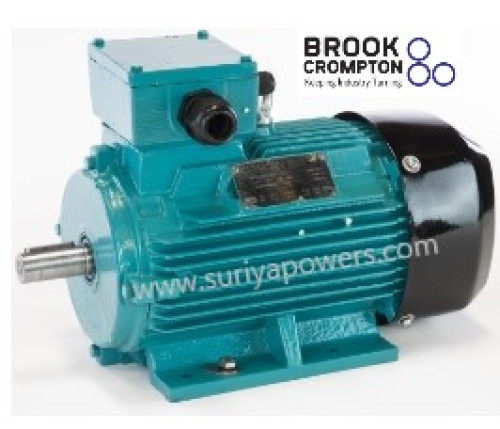

BROOK CROMPTON รุ่น AU-DF315LB 200KW 3PH 4P B3 IE2 มอเตอร์บรุ๊คคอมป์ตัน

รายละเอียดสินค้า BROOK CROMPTON รุ่น AU-DF315LB 200KW 3PH 4P B3 IE2 มอเตอร์บรุ๊คคอมป์ตัน
